PAX E600 Portable Integrated SmartECR Superior Performance Powered by a Quad-core processor and with abundant memory capacity, the E600 offers a state-of-the-art seamless payment experience. Bigger Screen & Better Viewing Brilliant 8-inch HD touch-screen with consistent viewing from any angle, delivering life-like images & a visually rich operational experience. Dual Screens Large merchant-facing touch-screen and customer-facing 1280x800 pixel display. Omni Payment Supports NFC contactless, chip & PIN, magstripe, mobile wallets and QR code payments. Dual cameras Scan codes & data in milliseconds.
5 megapixel front camera & 0.3 megapixel rear camera

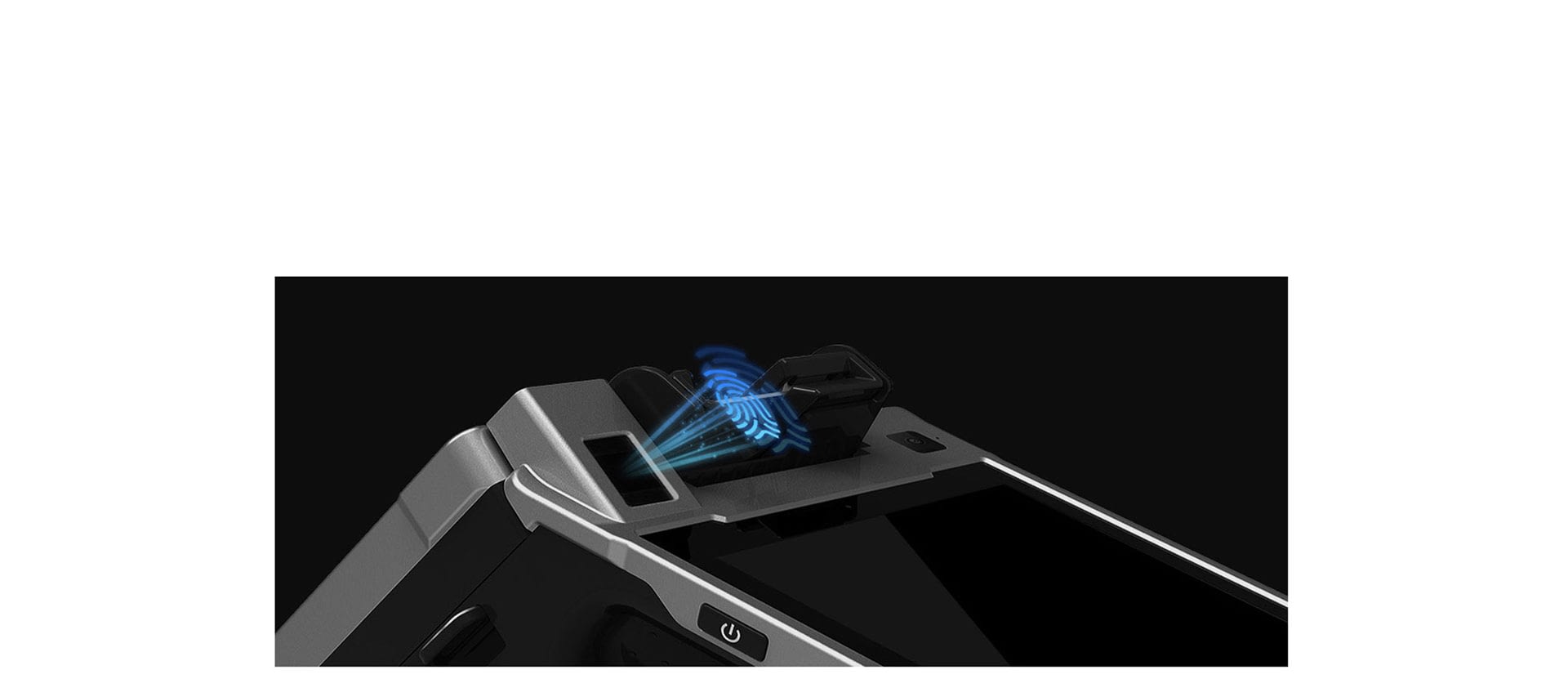

Biometric Authentication Higher security with staff finger-print unlocking system. Slim yet Rugged An optional base station acts as a natural home for the E600, providing multiple connectivity options. Magnetic Docking Base An optional base station acts as a natural home for the E600, providing multiple connectivity options. Advanced Printing High-speed 70mm/s thermal printer with sound reduction technology and automatic receipt cutter for smoother checkout operations. Battery Power Never miss a transaction thanks to the main 2600mAh rechargeable Li-ion battery and a 30- minute backup battery
Compact

  • elegant and functional
  • designed with special care for user’s convenience
  • optimal space occupation to service customers
Multiple use cases

  • point of sales and payment applications
  • specialised industry applications
  • single or multi-site work
Reliable

  • low failure rate over years
  • highest quality of components
  • robust high capacity battery
Innovative

  • integrated ECR and Payment terminal
  • dedicated display for merchant and customer
  • desktop or mobile operations

Technical specifications

Operating system

PayDroid, Android 7.1

Display

8-inch All Perspective IPS Display 800 x 1280 Pixels HD Display Capacitive Touchscreen

Peripheral Ports

1 x Cash Drawer RJ11 (24V)
1 x RS232
3 x USB Type A, USB HOST 2.0
1 x DC Power Supply Interface
1 x LAN

Camera

5 Megapixel Fixed Focal Front Camera
0.3 Megapixel Rear Camera

Physical

L x W x H(mm) : 285 x 131 x 118
Weight (kg): 1.4

Processor

Quad-Core Cortex – A53, 1.4 GHz

Certifications

PCI PTS 5.x, CSEC, ABECS, EMV L1, EMV L2
MasterCard PayPass L2
Visa PayWave , TQM
American ExpressPay
PTCRB
FCC, IC, UL
RoHs

Functions

1 x Speaker
GPS/GALILEO/GLONASS/BEIDOU
Light Sensor & G-Sensor

Battery

7.2V/2600 mAH
Rechargeable Li-ion battery

Memory

1GB DDR + 8GB eMMC

Payment Module

PCI & EMV Certified Payment
Acceptor with Full NFC Contactless 4.3-Inch Color Touchscreen

Printer

2-inch thermal
Printer with Auto Cutter
Paper Width: 58mm
Paper Speed:80 mm
Diametr: 50 mm

Communications

FDD-LTE/TDD-LTE
WCDMA/ TD-SCDMA/EVDO
GSM/CDMA
Bluetooth 4.2 BLE
WiFi 2.4 GHz +5 GHz, Supports Hotspot
