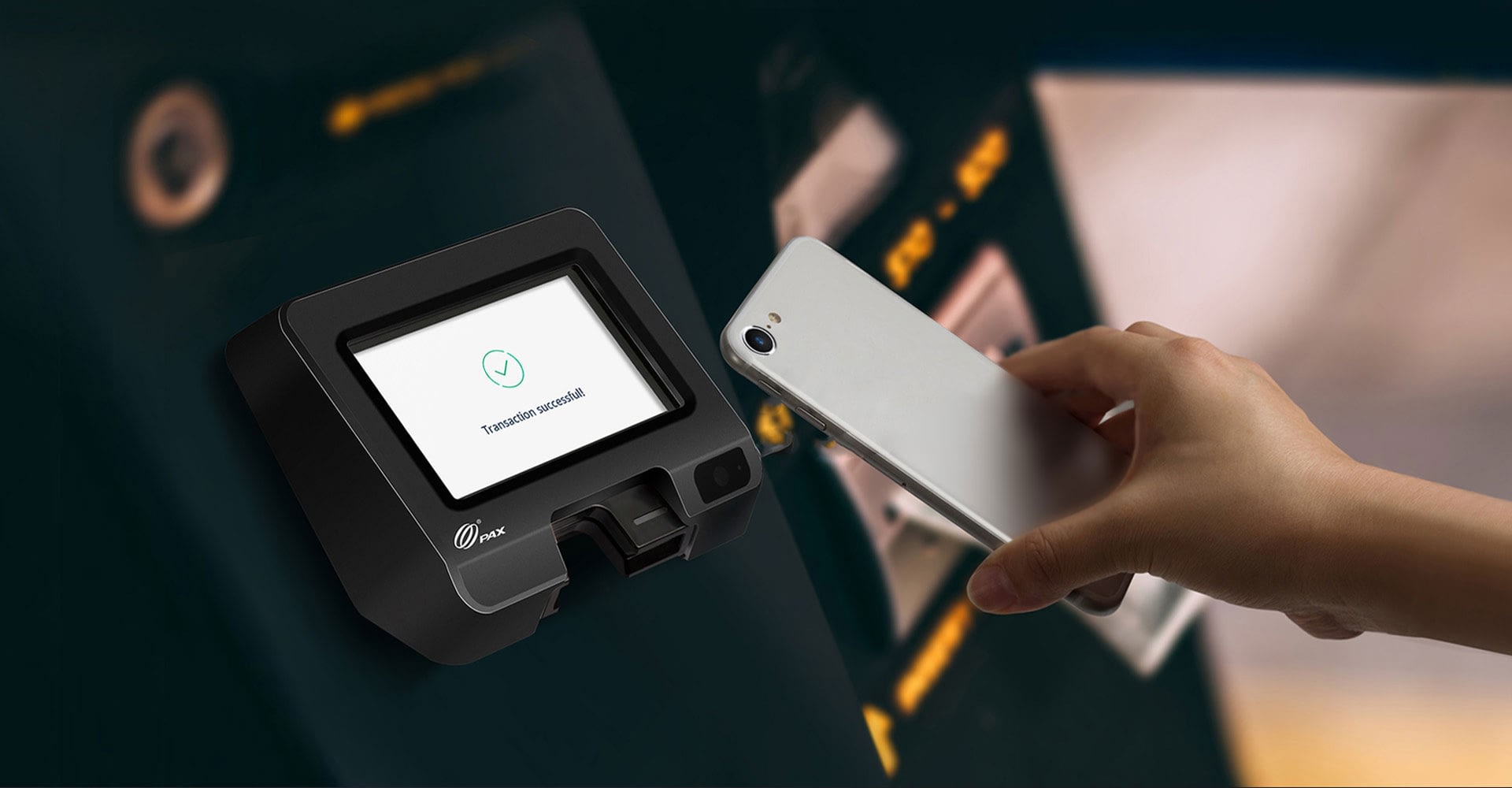

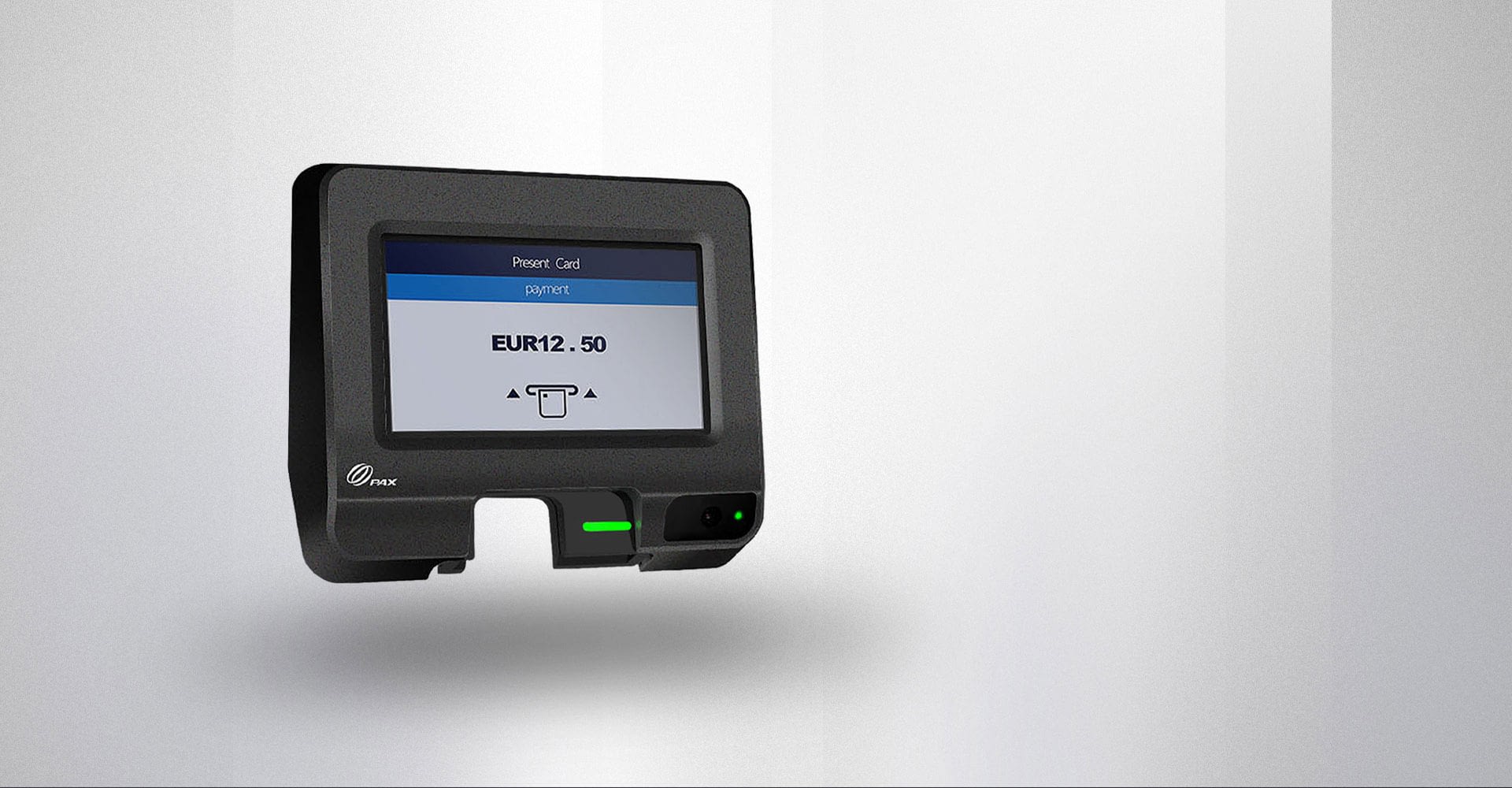

PAX IM20 All-in-one Unattended Payment Terminal Exceptional Performance The IM20 has a high performance ARM A7 processor, abundant memory capacity and operates smoothly with a Prolin operating system. Large Display The 4.3-inch color touchscreen with 480 x 272 pixels delivers stunning viewing experience. Accept all kinds of payments The payment module supports Chip & PIN, magstripe, NFC contactless, and has a professional scanner for QR code payments. Communication Box
Reliable

  • low failure rate over years
  • highest quality of components
  • the highest resistance to external conditions
Innovative

  • colour touch display with PIN entry mode
  • contact, contactless and magstripe card reader
  • QR and barcode reader
Integrated

  • many integrations and communication means available
  • compatible with EVA standard
  • working with MDB protocol

Technical Specifications

Display

4.3-inch TFT Color Display
480 x 272 pixels Touchscreen

Communications

Wi-Fi 2.4GHz + Bluetooth

Card Readers

Magnetic Card Reader
Smart Card Reader
Contactless Card Reader

SAM slots

3 x SAM

Peripheral Ports

1 x USB Device
1 x RS232
1x MDB

Processor

Cortex A7

power

5.0 V DC, 2.0A (via USB)
9V-45V DC (via MDB)

camera

0.3 Megapixel Fixed Focus Front
Camera Reads 1D & 2D Codes

Certifications

PCI PTS 5x, SRED, EMV L1 &
EMV Contactless L1,
Visa payWave, MasterCard payPass,
American ExpressPay, MasterCard TQM,
Discover D-PAS, Interac_Flash L2,
J/Speedy L2, CSEC, APCA, UL, CE, FCC, Anatel, CCC, RoHs, IC

memory

256MB DDR + 128MB Flash

physical

W x H x D (mm) :140 x 122 x 73
Weight (g): 491g

Keypad

Virtual Keyboard on Touch Screen

Environmental

Operating Temperature
-20°C ~ 70°C (-4°F ~ 158°F)
Storage Temperature
-30°C ~ 70°C (-22°F ~ 158°F)
5% ~ 95% Relative Humidity,
Non-condensing
