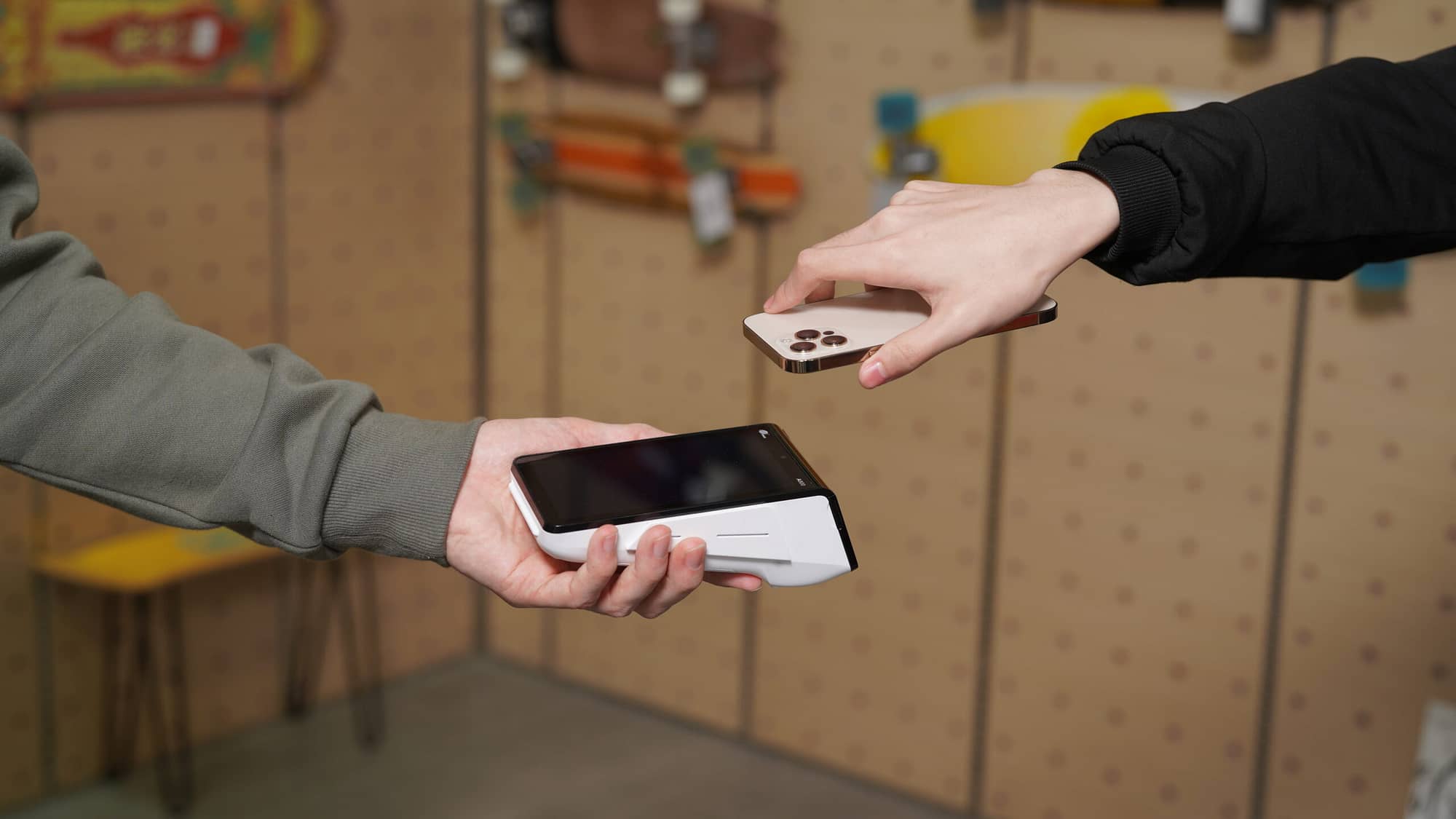

PAX A800 Android Desktop & Mobile Combo Superior Performance PayDroid OS transforms how payment service providers do businesses, providing a platform for a richer customer & merchant experience. Modern, Stylish and Space-saving Omni-Payment Solution The A800 accepts any payment method , from traditional Chip & PIN, Magnetic Strip and contactless, to alternative QR code transactions. Streamline Business Processes Regardless of the Size of Your Business The Android-based operating system lets you access a whole new world of value-added applications and services, helping to better manage your business through new services such as loyalty programs or instore product management - something only available to larger retailers, up until now. Meet a Wide Variety of Usage Scenarios Thanks to the handheld design, optional inbuilt battery and multiple network connectivity such as 2G, 3G, WiFi, and Bluetooth 5.0, the A800 meets a wide variety of usage scenarios.
Innovative

  • fast- Quad-core Cortex-A53,2GHz
  • large memory 8/16 GB eMMC +1/2GB DDR
  • capacitive Touchscreen display – 5,7”
Mobile & Desktop

  • long battery lifetime at one charge
  • ergonomic, space-saving
  • wireless connectivity
Easy to use

  • sharp high-res optimal size screen
  • intuitive navigation with touch screen
  • fast printer
Reliable

  • low failure rate over years
  • highest quality of components
  • robust high capacity battery

technical Specification

OS

PayDroid Powered by Android 10

ProceSsor

Application CPU: Quad-core Cortex-A53,2GHz
Security CPU: Security CPU 32-bitRISC-coreARM v7-M,72MHz

MEMORY

8GB eMMC +1GB DDR
16GB eMMC +2GB DDR (optional)
microSD Card Up to 128GB

Card Readers

Chip &PIN
NFC Contactless
Magnetic Stripe

Comms Configurations

Wi-Fi®2.4GHz & 5GHz | 4G | Bluetooth®5.0
Ethernet (optional)

SIM / SAM

1 Micro SIM +2 SAM |2 Micro SIM +1 SAM

Displays

5.7” Capacitive Touchscreen
720 x1440 Pixels

PRINTER

Paper Roll Outer Diameter: 40mm

Cameras (optional)

2MP Front-Facing |5MP Rear-Facing

Ports

1 Type-C(OTG)

Audio

1 Audio Jack

BATTERY

2300mAh| 7.2V (optional)

Accessories

Optional: HUB (1 LAN,3 USB)
Charging Base

Physical

188 x 66 x 79mm

environmental

-0°C~ 50°C(32°F ~ 122°F) Operating Temperature
-20°C~ 70°C(-4°F~ 158°F) Storage Temperature
10% ~ 93% Relative Humidity,
Non-Condensing

Certifications

PCI PTS 6.x
SRED
EMV L1/L2| EMV CL L1
Mastercard contactless
Visa payWave
Amex
D-PAS
qUICS
Interac Flash
CE | FCC |IC |UL | 3C
