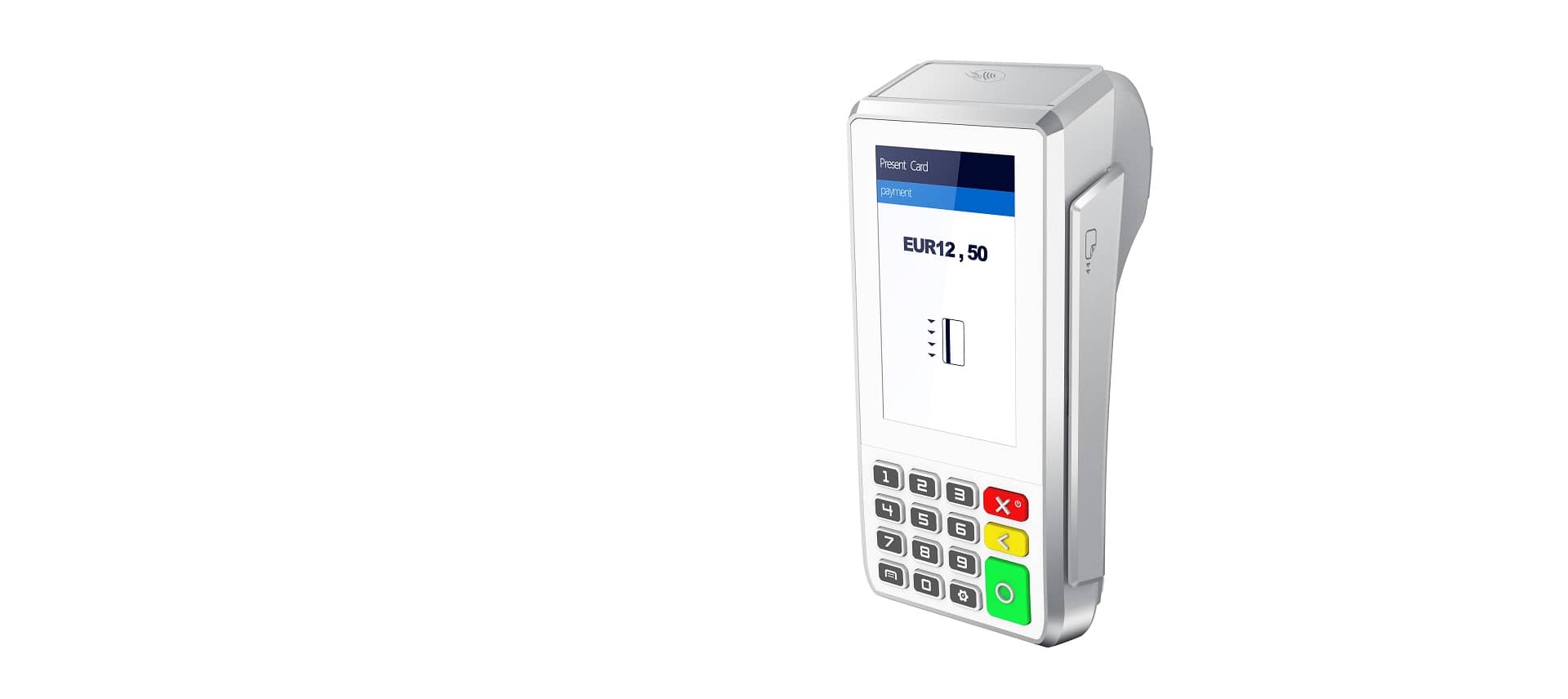

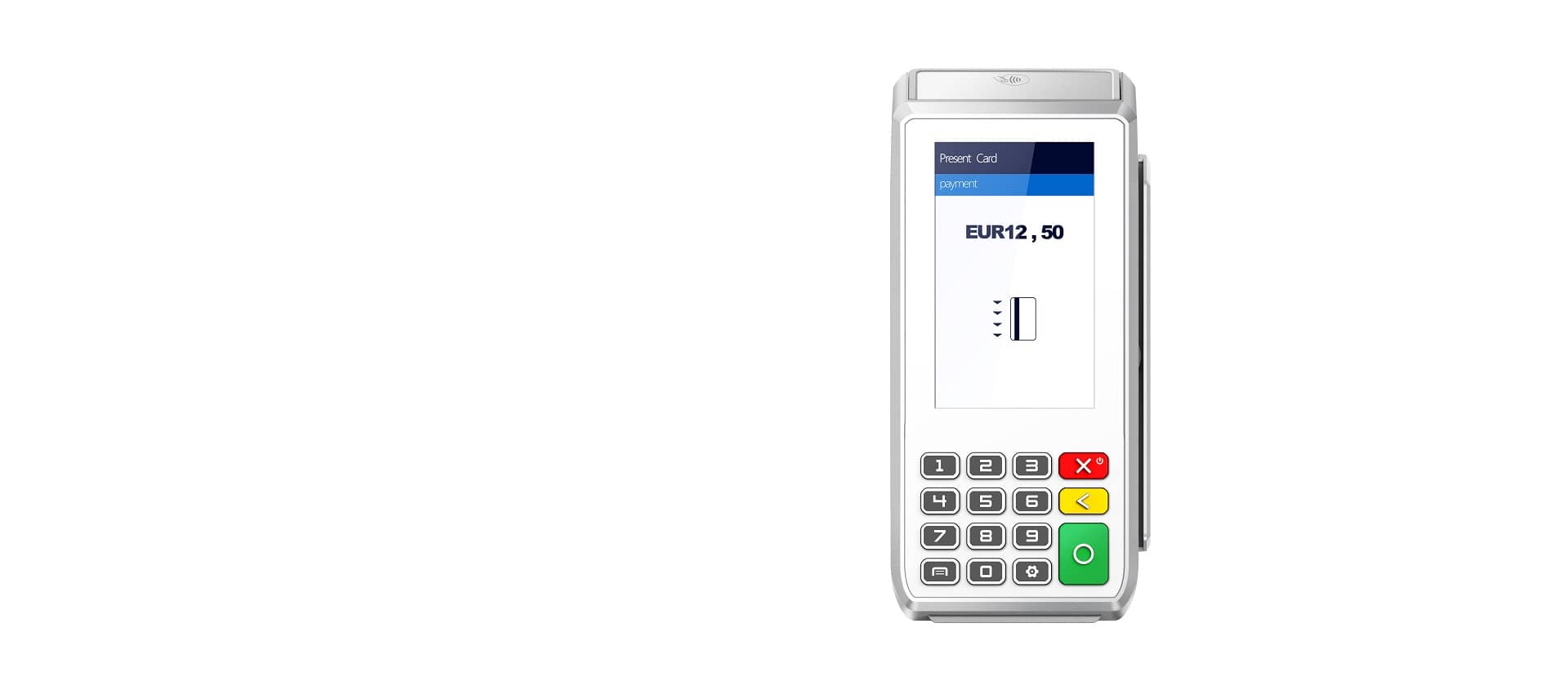

Pax Q80 The Q80 is PAX’s smallest desktop payment terminal with multiple wireless connectivity options and supports all possible payment options as Chip and PIN, NFC contactless, Magnetic and mobile wallets. Pax Q80 4-inch Capacitive touchscreen
Superior Communications Options
Inbuilt Camera (optional)
High Speed Printer
Prolin Based on Linux
PCI PTS 4.x SRED

Technical specification

Display

4” TFT WVGA 480 x 800 Pixels Touch Screen

Ports

RS232
Line
Telephone
Lan (RJ45)
Pinpad
Micro USB OTG
USB Host

Communication

Wi-Fi® 2.4GHz/5GHz (optional)
4G (FDD-LTE) (optional)
3G (WCDMA) (optional)
Bluetooth® (optional)
Modem (optional)
LAN

Environmental

0°C ~ 50°C (32°F ~ 122°F) Operating Temperature
-20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature
10% ~ 93% Relative Humidity, Non-Condensing

Keys / Buttons

10x Numeric keys
5 x Function keys

Camera

0.3MP Front-Facing (optional)

Printer

Print speed: 50 lines/s
Paper width: 58mm
Paper Roll Diameter: 40mm

Processor

Cortex A9

Battery

720mAh | 7.4V (optional)

Operating System

Prolin

Memory

512MB FLASH + 256MB DDR RAM
Extended microSD Card Slot Up To 32GB

Physical

181 x 83 x 72mm, 410g (excluding battery)
181 x 84 x 81mm, 418g (excluding battery)

Certifications

PCI PTS 4.x
SRED EMV L1 & L2
EMV Contactless L1
Discover D-PAS I IC
MasterCard Contactless
Visa payWave

American ExpressPay
UPI qUICS
Mastercard TQM
RoHs
CE
