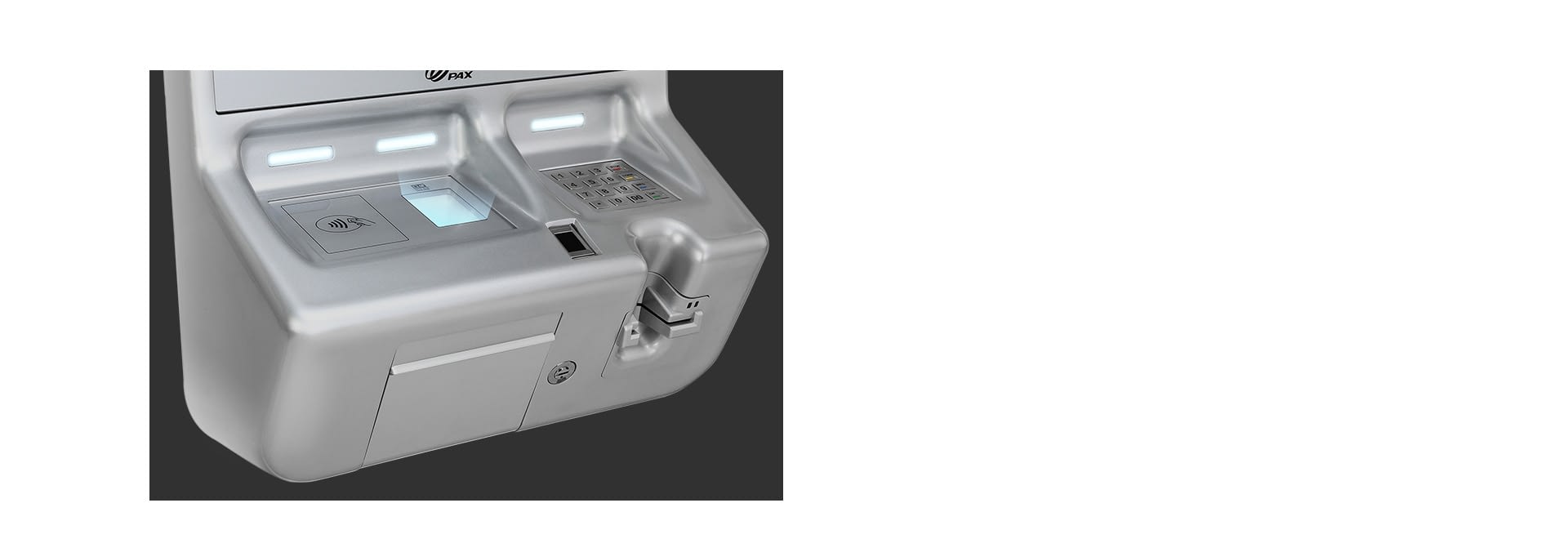

PAX SK800 All-in-one Smart Kiosk Powerful Processor. Speedy and Strong A more powerful Quad-core 1.4G processor and up to 128GB of RAM offers all the benefits of Android. Quad-Core Cortex-A17 PayDroid OS 2GB RAM + 16GB ROM
High performance and low
power consumption
PayDroid OS
Combining the security & software
flexibility of Android 6.0
2 GB pamięci RAM + 16 GB pamięci ROM
Duża pamięć, wiele aplikacij.
Larger Screen
Better Viewing
A large IPS touchscreen on a self-service
kiosk with sharp features.

23.8-inch screen
1080P HD
300 nits
Flash Reminder Guiding you to the payment area for a faster
transactional experience.
Najlepszy system oświetlenia
Dla optymalnego oglądania w ciemności.


Top Lighting System
Omni-Payment Solution -Hybrid EMV/MSR Card Reader PIN-on-Keypad NFC Contactless Capacitive Fingerprint (FBI Certified) QR Code Payment Apple Pay, Google Pay Facial Recognition A faster and more secure method of customer
authentication.
Flexible Printer A demountable and lockable high-speed
thermal printer in an innovative
modular design.

-80mm Line/Thermal printing
-50km Print Head Life
-150mm/s Printing speed
-Dismountable and Lockable
Slide Use Cases
Reliable

  • Low failure rate over years
  • Highest quality of components
  • The highest resistance to external conditions
Functional

  • Touch screen with Android and integrated cashless payments
  • Integrated printer, camera and speakers
  • Large and sharp screen with intuitive touch screen handling
Multiple use cases

  • Online/onsite ordering
  • Customer self service
  • Online live chat with consultant

TECHNICAL SPECIFICATIONS

Free standing

OS

PayDroid, based on Android 6.0

display

23.8-inch Anti-vandalism Display
1920 x 1080 Pixels
Capacitive multi-touch touchscreen

Physical

LxWxH: 965 x 390 x 175mm , Weight: 13 kg

audio

1x microphone, 2x speakers

Environmental

-10°C ~ 50°C (32°F~122°F)/Operating Temperature
-20°C ~ 70°C (-4°F~158°F)/Storage Temperature
5% ~ 96% Relative Humidity,/Non-condensing



Wall-mounted

Processor

Quad Core Cortex A17 1.8 GHz

Peripheral ports

1xRJ45(LAN), 1xRS232 (DB9), 1xRS485 Half-Duplex (RJ-11), 1 x micro -USB OTG, 1 x 24V DC, 1 x HDMI

camera

8 megapixel, auto focus front camera

Communications

Wi-Fi® 2.4GHz/5GHz, Supports Hotspot
4G (TD-LTE/FDD-LTE) (optional)
Bluetooth®
LAN (10/100/1000M)

Certifications

PCI PTS 5.x, SRED, EMV L1 & L2, EMV Contactless L1
Visa payWave, Mastercard contactless, UL
CE, FCC, RoHS, IC

Memory

2GB DDR + 16GB eMMC, 1 x microSD Card Slot, Supports up to 128GB

adapter

Input:100-240V AC, 50Hz/60Hz, Output: 24V DC, 3.5A

Printer

Printing Speed: 150mm/s
Paper Width: 80mm
Roll Diameter: 80mm
Automatic Paper Receipt Cutter

Code reader

reads 1D and 2D codes

DOWNLOAD PRODUCT SPECIFICATION
